Product Description

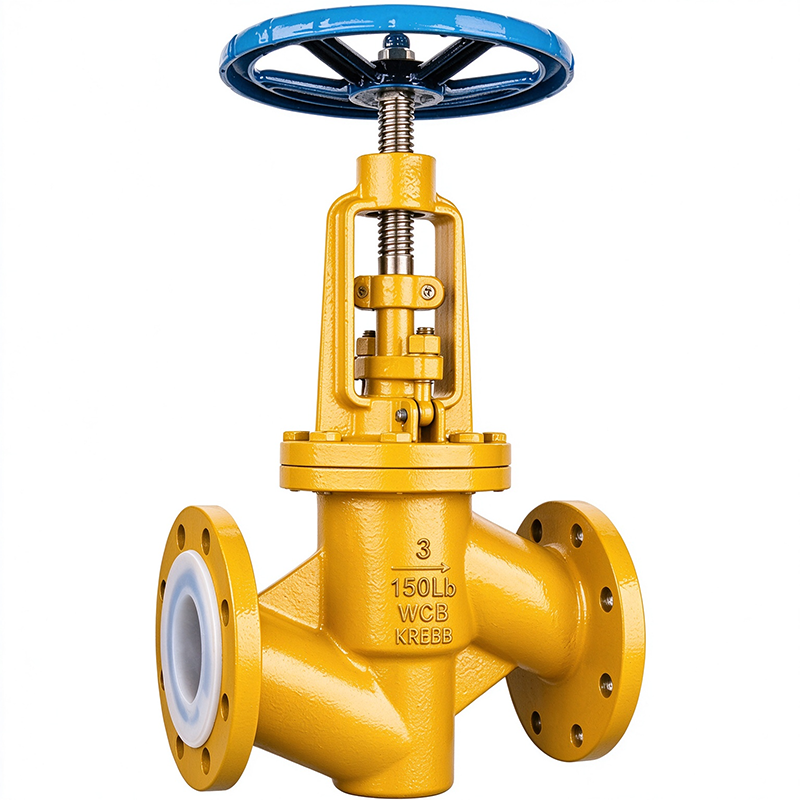

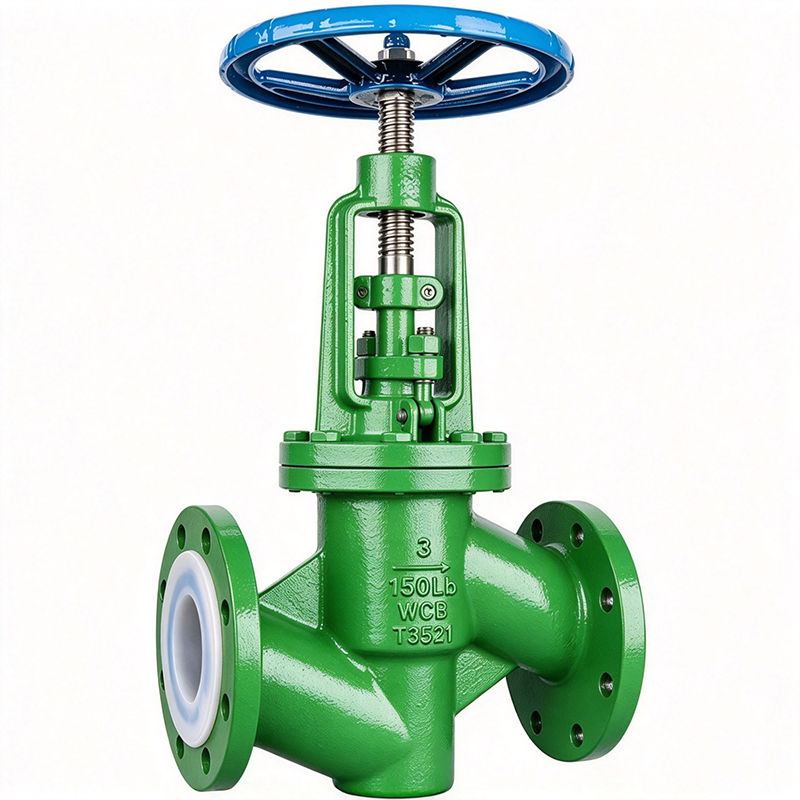

1. Fluoroplastic lined globe valve, all wetted parts of valve body and disc are lined with fluoroplastic. The metal substrate is isolated from strongly corrosive media, suitable for strong acid, strong alkali and highly corrosive chemical media.
2. Valve design complies with ASME B16.34. Lining adopts fluoroplastic materials such as PFA, FEP and PTFE.
3. Material of metal valve body substrate and grade of fluoroplastic lining can be selected according to temperature and concentration of corrosive media.
4. Applied in chemical, pharmaceutical and pickling process pipelines to shut off strongly corrosive media and protect metal substrate from corrosion.
Features & Benefits
1. All wetted parts are lined with fluoroplastic to isolate various strong acid and alkali corrosive media with excellent corrosion resistance.
2. The lining and metal substrate are molded under high temperature and high pressure. The lining features strong adhesion and is not easy to delaminate.
3. Fluoroplastic soft sealing pair delivers good sealing performance with reliable tightness at closed position.
4. Media inside flow passage only contacts fluoroplastic without touching metal body.
5. It supports working conditions of shut off and throttling regulation.
6. Flanged connection enables convenient disassembly, assembly and maintenance, suitable for highly corrosive chemical working conditions.
7.It adopts 45° straight-flow inclined flow passage with smooth and straight channel, low flow resistance, much lower pressure drop than conventional globe valves, and medium is not easy to accumulate.
