Product Description

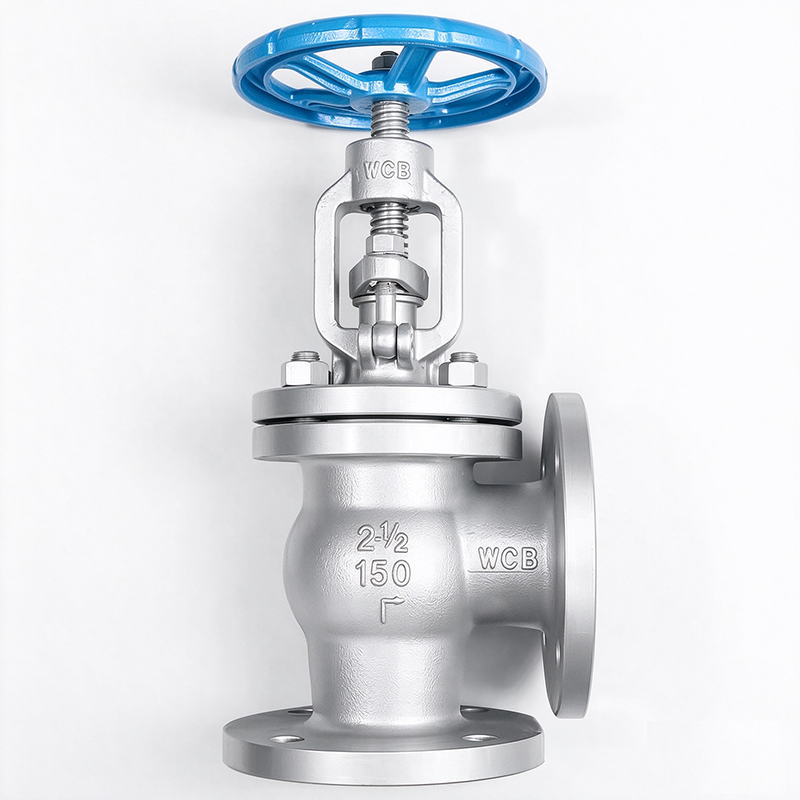

1. Angle globe valve has inlet and outlet at 90 degrees right angle to change pipeline flow direction and reduce elbow fittings, applied for right angle turning positions of pipelines.
2. Valve is designed in accordance with API 623 and ASME B16.34. The disc lifts vertically for shut off and throttling.
3. Material of body, disc and seat can be selected according to medium working conditions.
4. Widely used in inlet and outlet pipelines of heat exchangers, coolers and reaction equipment for shut off and throttling on right angle pipelines.
Features & Benefits
1. 90° angle streamlined flow passage, outside screw and yoke with bracket and bolted bonnet, simplifies pipeline layout and reduces pressure loss.
2. Hard alloy overlay on disc and seat, high temperature resistance and wear resistance, available for shut off and throttling regulation.
3. Forged stem is equipped with back seal structure for reliable sealing and preventing stem ejection under internal pressure.
4. Nitriding treatment on stem surface provides good corrosion resistance and anti galling property with stable opening and closing torque.
5. Rising stem, handwheel non rising type. Rolling bearing is equipped for medium and large bore for easy operation.

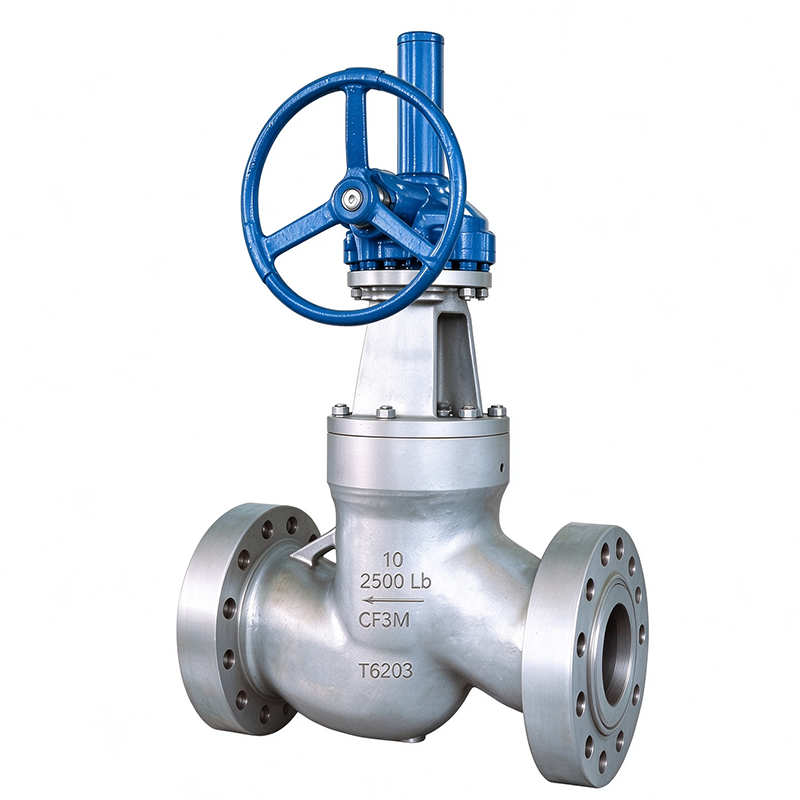

6. For nominal pressure Class800 and above, pressure self tightening bonnet structure is adopted for valve cavity. Bonnet sealing performance improves as pressure rises to guarantee reliable sealing.
