Product Description

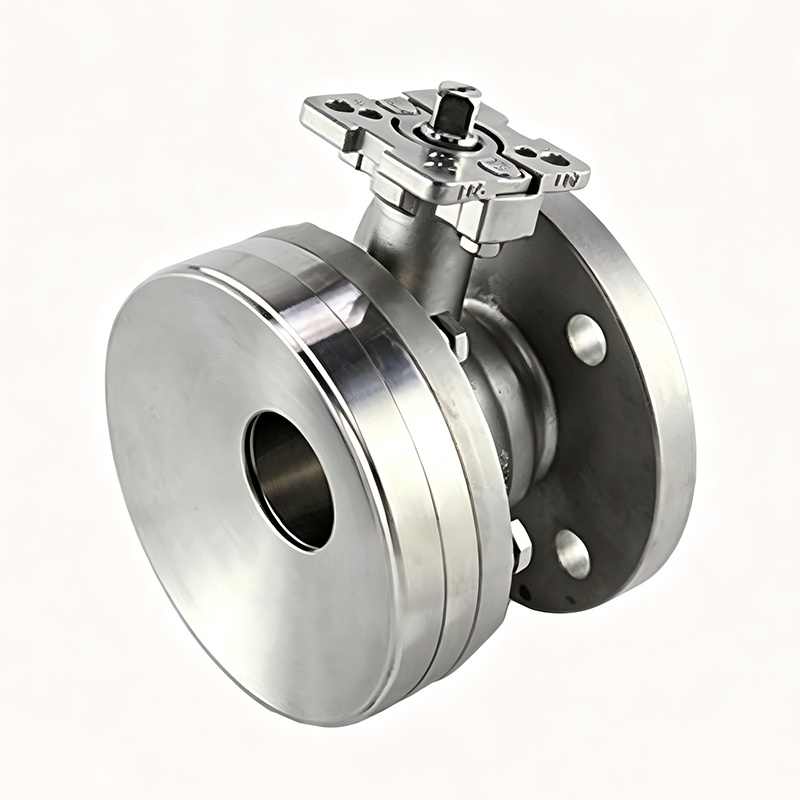

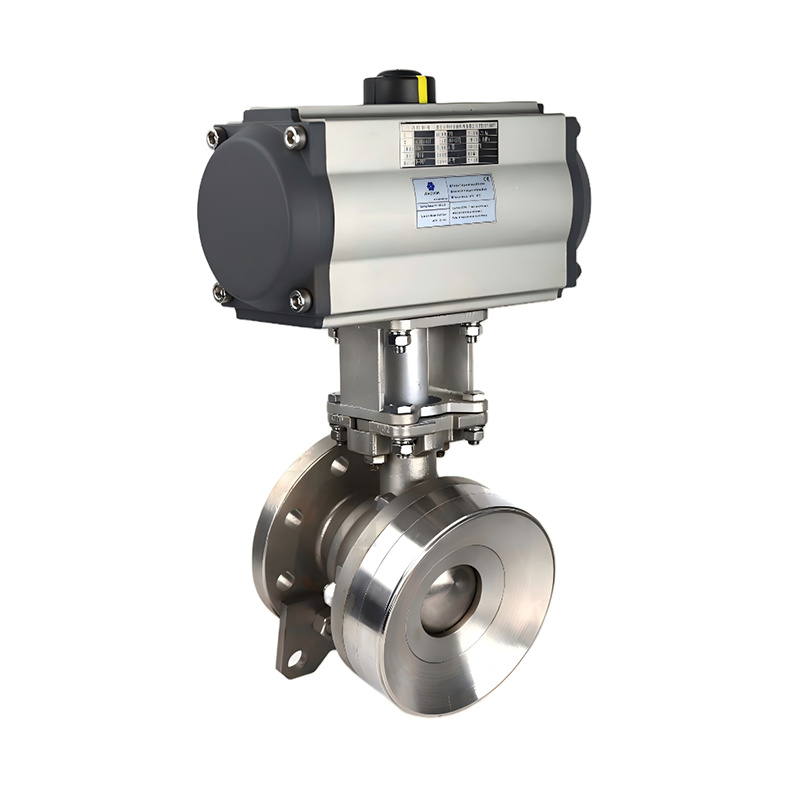

1. Axe Bottom Ball Valve is specially developed for the discharging conditions at the bottom of reaction kettles and storage tanks, featuring long service life and high operational reliability.
2. The valve design complies with ASME B16.34 standards .
3. Multiple material options for body and bonnet, complete set of valve trims and internal surface polishing grades are available upon request.
4. Mounted at vessel bottom, this valve is applied in pharmaceutical, fine chemical and food industries for dead-zone-free discharging and shut-off isolation.
Features & Benefits
1. Sealing performance: Equipped with special seat, it delivers excellent sealing performance for both soft-seat and metal hard-seat options.
2. Stem safety structure: Bottom-loaded stem design eliminates stem ejection risk and maintains sealing integrity under fire service conditions.
3. Fire safe and anti-static feature: Fire-safe and anti-static structures are provided for flammable and explosive medium service.
4. Residue-free structure: Inlet face is flush with tank bottom to eliminate dead-leg and minimize material accumulation.
5. Locking mechanism: Lock holes are provided at both full-open and full-closed positions to prevent mis-operation.
6. Design advantages: The valve features fast opening and closing, compact structure, optional mirror-polished internal surface, easy maintenance and smooth discharging performance.
