Product Description

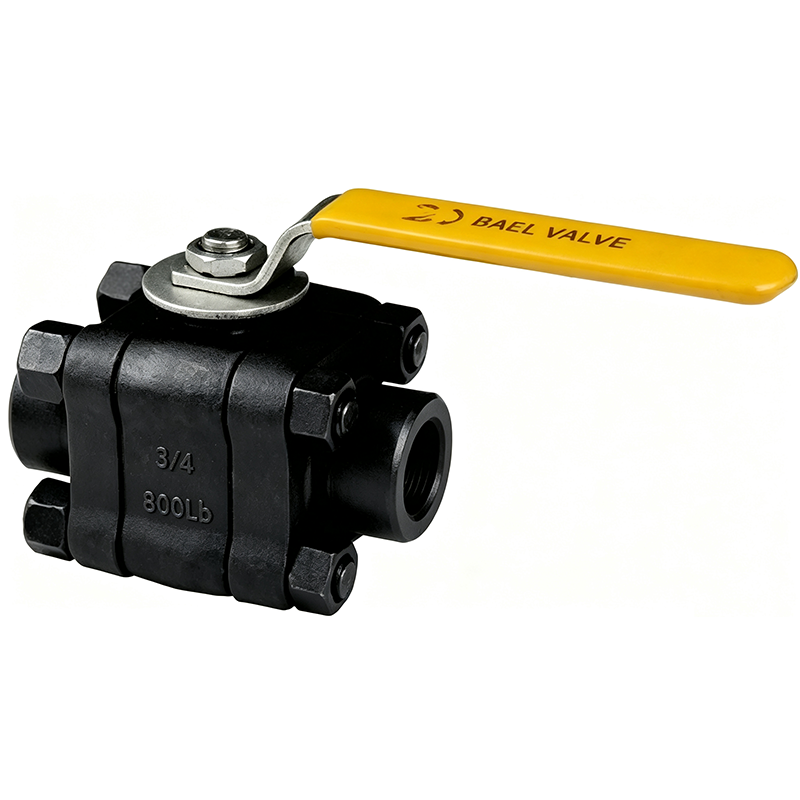

1. 3PC Forged Steel Soft Seal Ball Valve adopts three piece split structure. The valve body consists of left, middle and right parts connected by high strength long bolts, featuring high structural strength and reliable sealing, suitable for high pressure working conditions.
2. The valve body is made of high quality forged steel through forging and precision machining, with dense grain structure and excellent mechanical properties, high strength for small bore high pressure pipelines.
3. The stem is of bottom mounted design with low operating torque for easy opening and closing.
4. The product design complies with ASME B16.34 standard. Pressure class covers ANSI Class 800LB. It is widely used as shut off device for pipelines of water, air, natural gas, oil and other media to realize medium cut off and isolation.
Features & Benefits
1. Forged Steel Construction: The valve body is machined from three pieces of forged steel, free from casting defects, with high structural strength for high pressure working conditions.
2. Excellent Soft Seal: PTFE/RPTFE seat mates with precision ball, providing bi-directional bubble tight sealing.
3. Stem Safety Structure: Bottom mounted anti blowout stem design eliminates stem ejection risk.
4. Fire Safe and Anti Static: Equipped with fire safe and anti static structure, suitable for flammable and explosive media.
5. Accurate Handle Indication: Flat stem structure enables handle position to accurately reflect valve open and close status.
6. Locking Mechanism: Limit stops are provided at fully open and fully closed positions to prevent misoperation.
7. Easy Operation: Precision fit between ball and stem reduces friction and operating torque for effortless handle operation.
