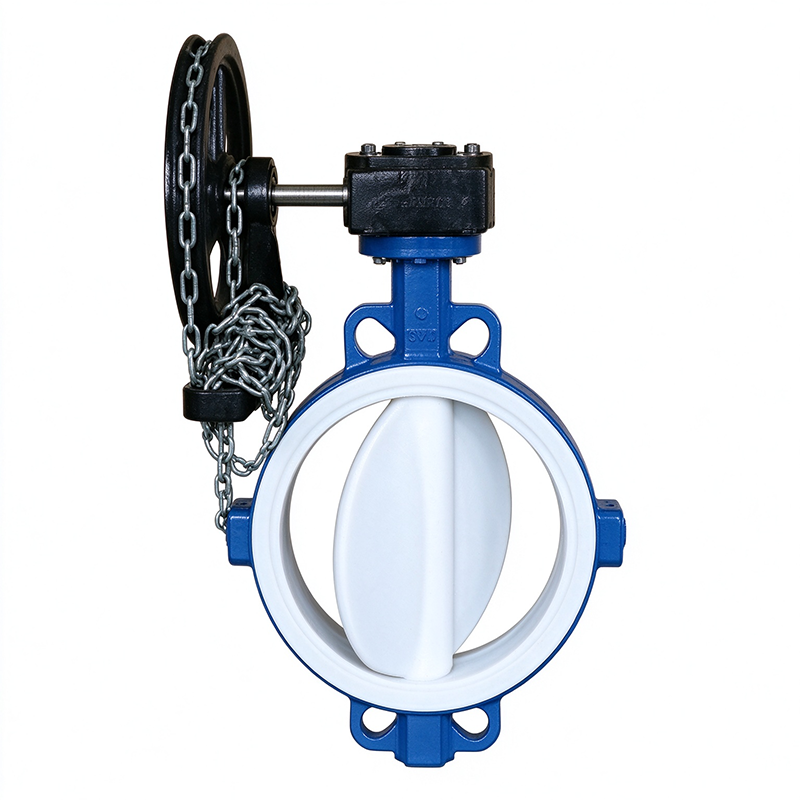

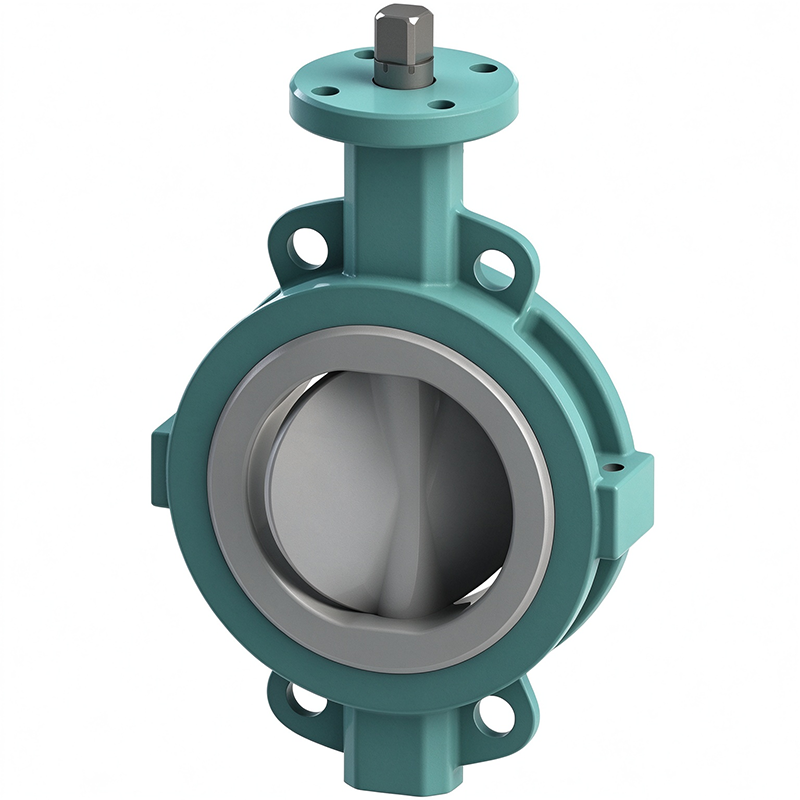

Concentric Fluoroplastic Lined Resilient Seated Wafer Type Butterfly Valve

Concentric Fluoroplastic Lined Resilient Seated Wafer Type Butterfly Valve Featured Image
  • Concentric Fluoroplastic Lined Resilient Seated Wafer Type Butterfly Valve
  • Concentric Fluoroplastic Lined Resilient Seated Wafer Type Butterfly Valve
  • Concentric Fluoroplastic Lined Resilient Seated Wafer Type Butterfly Valve

Short Description:

  • Nominal Size: NPS 2"～NPS 48"
  • Pressure Class: ANSI Class 125-150LB, JIS 5K, 10K
  • Operating Temperature: -20℃～+180℃
  • Design Standard: API 609
  • End Connection: Wafer
  • Operation: Handwheel, Worm Gear, Pneumatic Piston, Electric, Hydraulic Actuator
  • Body/Bonnet Materials: QT450, WCB, CF8/CF8M, LCB/LCC, A890 4A, A890 5A, A890 6A and Monel.
  • Lining Material: PTFE, F46, PFA.
  • Test Standard: API 598

    • Product Detail

    Product Tags

    Product Description

    1. Concentric Fluoroplastic Lined Resilient Seated Wafer Type Butterfly Valve adopts thin wafer structure with full fluoroplastic lining inside valve body.

    2. Concentric disc presses against fluoroplastic lining to achieve bidirectional resilient sealing and resist strongly corrosive media.

    3. Fluoroplastic lining material can be selected according to medium temperature and corrosion severity.

    4. Widely used in pickling and strongly corrosive chemical process pipelines.

    Features & Benefits

    1. PFA/PTFE fluoroplastic lining resists strong acid, strong alkali and strong oxidants.

    2. Bidirectional zero leakage resilient sealing.

    3. Short face to face dimension saves installation space.

    4. Concentric design delivers moderate operating torque compatible with various actuators.

    5. Better chemical resistance than ordinary rubber lined butterfly valves.

    6. Suitable for on off and slight modulating service.
